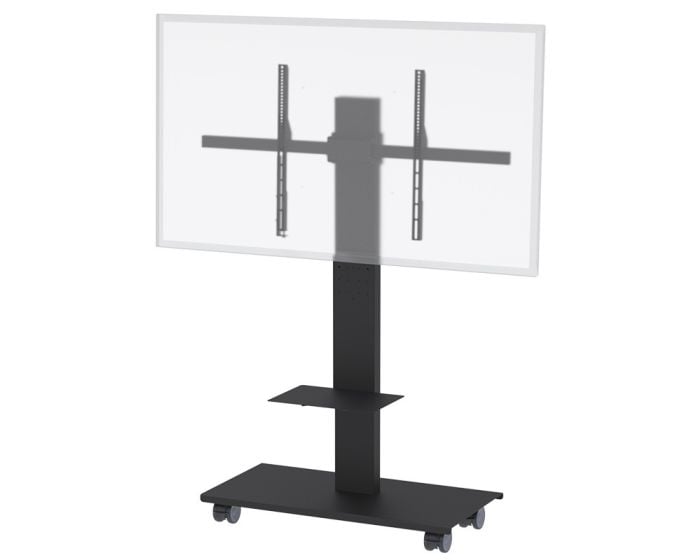

SYZ84 Series

The SYZ84 economy LCD monitor stand is a solution for a wide range of video conferencing and interactive applications. Its unique modern design plus accessible base shape is ideal for corporate and educational environments. Adjustable display bracket and cable passage in spine with grommets both in the top and bottom for passing cables inside the unit, leaving it with a very clean controlled appearance. This unit is available in white & black metal; maximum weight capability 250 lbs.

Standard Features

• Single and XL displays mount choices
• Designed to accommodate *SMART kapp iQ™ 55" (S version) & 65" (XL version) capture board
• Maximum display weight cannot exceed 250 lbs
• Adjustable TV bracket height during setup
• Cable passage in spine
• Heavy duty steel weighted base
• 1x SYZ2 Laptop shelf included, which can be placed in front or rear of the unit
• Rolls on 4 wheels
• Accessible base design to allow access to the monitor without tripping over support legs

Mount Choices

• Single: 1x 40"-70" display
• XL: 1x 65"-90+" display
• CS55: 1x Cisco Spark Board 55
• CS70: 1x Cisco Spark Board 70
• CS75: 1x Cisco Spark Board 75

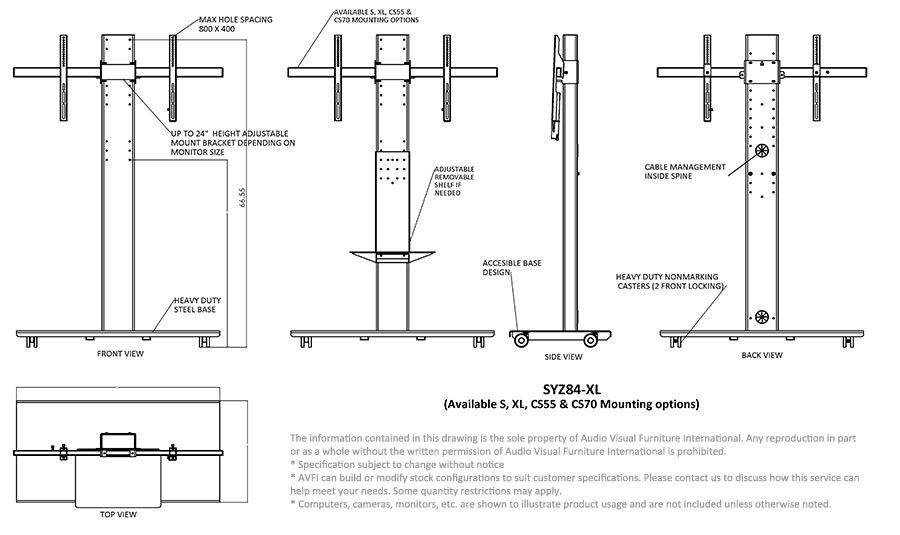

Specifications

• Model: SYZ84-S/ XL
• Width (Base): 44”
• Width (Overall): S-44”/ XL-53”
• Depth: 22”
• Height: 68”
• Weight Capacity: 250 lbs
• Colors: White (W) & Black (B) metal

Options

• Laptop Shelf/Arm SYZ1 | SYZ2 | SYZ5
• Cisco SX20 Codec Bracket BKT-SX20
• Camera Bracket (32 - 55in TV's) Camera Bracket (32 - 55in TV's)
• Camera Bracket (56 - 90" TV's) TVCB-XL
• Room and Quad Camera Bracket BKT-ROOM
• Codec Bracket PM-RP-BKT
• 6 Outlet 110V Power Bar PB
