TP1000 is a mobile display stand tailored for diverse video conferencing and flat panel display applications. It's perfect for boardrooms, corporate offices, legal firms, classrooms and beyond. Engineered with a hollow body optimized for rack mounting common video conference codecs and accessories, the TP1000 ensures seamless integration and efficient setups in any professional setting. Presented in a sleek black laminate finish accented with sturdy aluminum corners, it combines aesthetics with functionality. The TP1000 offers flexibility, accommodating a variety of displays based on the selected TV mount, making it the ideal choice for versatile conference room configurations and display setups.

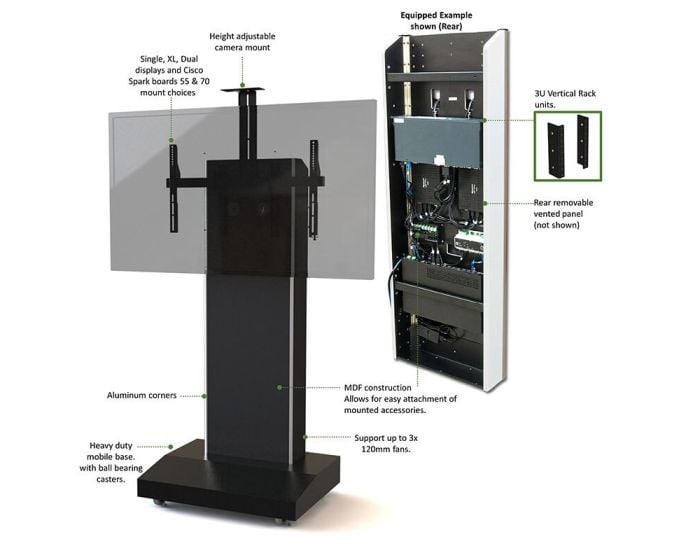

Standard Features
- Single, XL and Dual displays mount choices
- Adjustable TV bracket height during setup
- Adjustable camera mount for mounting above or below TV
- 3U vertical rack and wiring channel inside main pillar
- Includes 3U mounted codec basket, electronics shelf and a 6 outlet power bar with 10 ft. cord mounted inside
- 4" Heavy duty ball bearing casters with non-marking wheels
- Supports up to 160 lbs displays
- 1x FAN Quiet cooling fan with vented rear panel
- Black laminate finish with aluminum corners
Mount Choices
- Single: 1x 40"-70" display
- XL: 1x 65"-90+" display
- Dual: 2x 42"-70" displays
- CS55: 1x Cisco Spark Board 55
- CS70: 1x Cisco Spark Board 70
- CS75: 1x Cisco Spark Board 75
Specifications

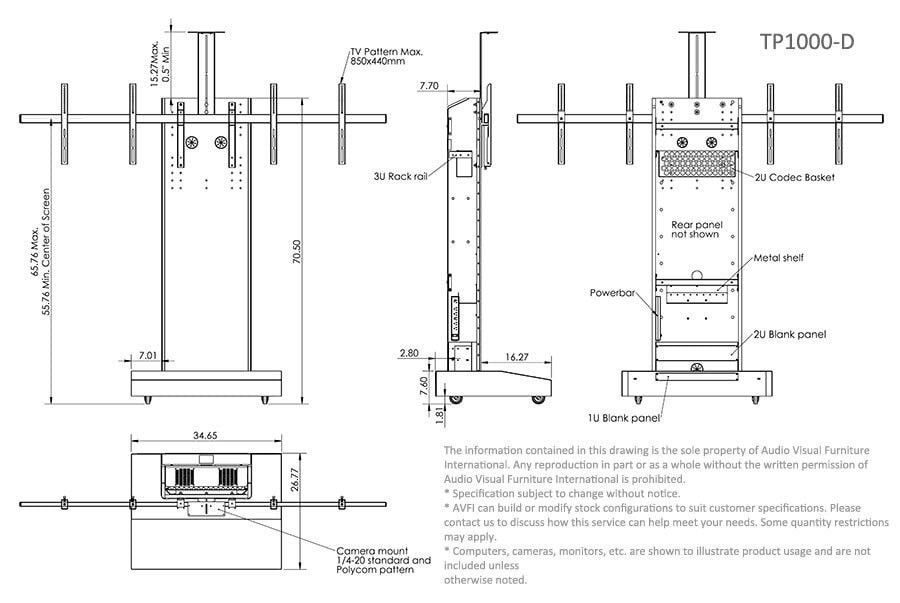

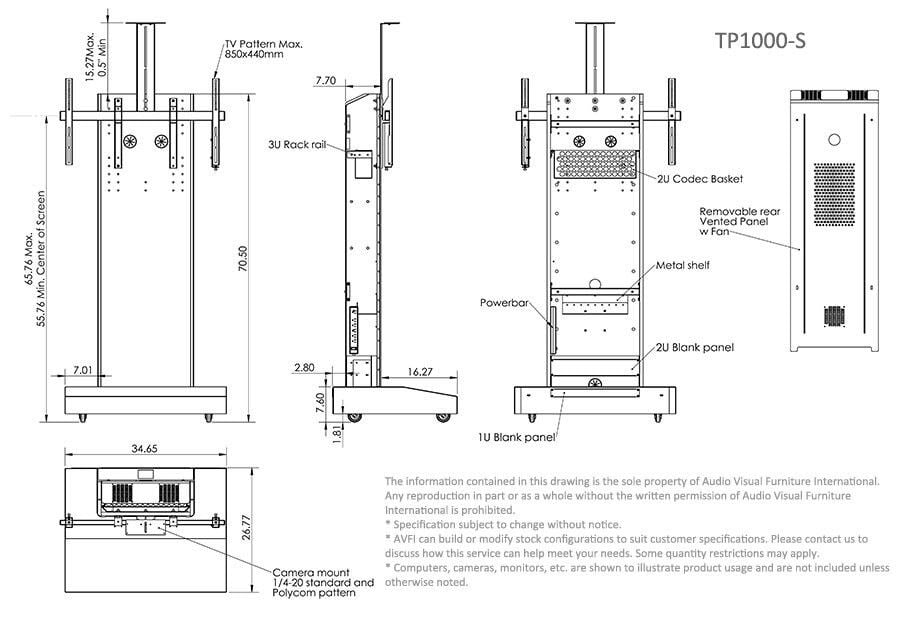

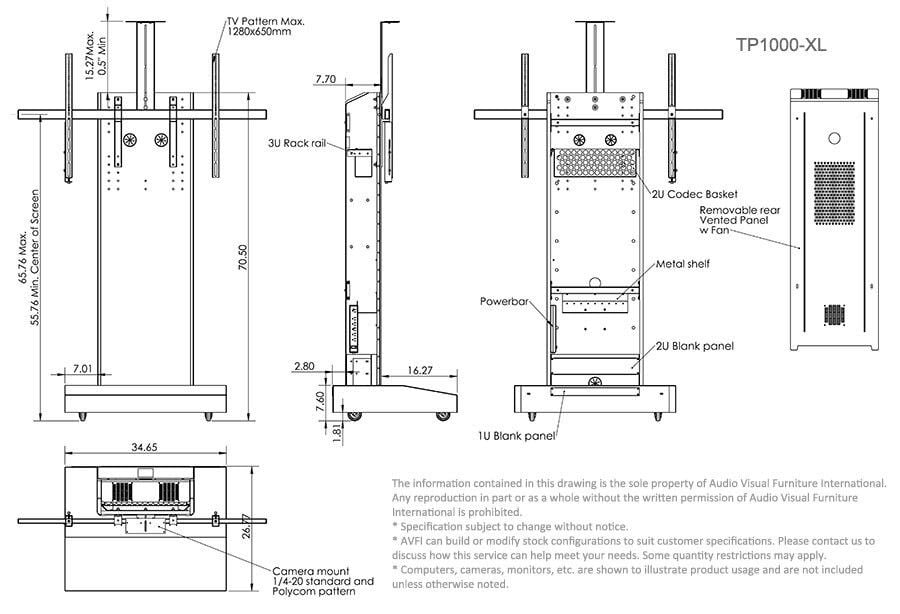

- Model: TP1000-S/ XL/ D
- Width: S-35”/ XL-53”/ D-84”
- Depth: 26.75"
- Height: 70.50”
- Weight Capacity: 160 lbs (72 kg) display total
- Color: Black laminate with aluminum corners
Options
- Room and Quad Camera Bracket BKT-ROOM
- Camera Bracket BKT-ST60
- Cisco SX20 Codec Bracket BKT-SX20
- Under TV Camera Bracket CBB-TV
- Cart Sound Bar Bracket SBB
- Front Shelf SH-TP-B
- 6 Outlet 110V Power Bar PB
- RR3 3U Set of Rack Rails
- 110V Outlet & USB Port Round Cable Well CUB3
